ChemPure®

ChemPure syringe filters are designed for efficient and cost-effective rapid filtration of almost any solution prior to analysis, and are optimized for superior flow rates and high throughput.

Category:

Product Parameters

ChemPure® Syringe Filters



ChemPure syringe filters are designed for efficient and cost-effective rapid filtration of almost any solution prior to analysis, and are optimized for superior flow rates and high throughput.



ChemPure offers a wide variety of membranes ideal for any application. The housing attaches to any standard Luer lock syringe, so the sample can easily be pushed through the membrane with minimal pressure. The result is a particulate-free eluent that is ready for use with HPLC, GC, or other analytical techniques.



Feature

Less system downtime

More consistent,reproducible results

Inceased columm Lifetime



Application

HPLC,UHPLC,IC, GC, Dissolution testing. general particulate re

moval

1
1

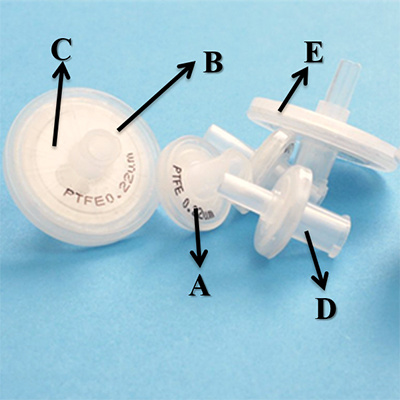

A. Identification

Membrane type and pore size are clearly marked on individual s

yringe filter



B. Luer Lock Inlet Tip

Secures connections to prevent "blow off"



C. Sample Distribution Rings

Creates even sample distribution for high sample flow rates



D. Medical Grade Polymer Housing

Offers the most inert syringe filter and helps eliminate unwante

d secondary interactions with the filter housing



E. Ultrasonically Welded

Ensures robust housing - filter integrity



Data Sheet

Parameters

ChemPure

Medical Grade Housing material

PP

diameter(mm)

4

13

25

Pore size(μm)

0.22, 0.45  & more

Large effective Filtration area(cm²)

0.15

1.09

4.08

Holdup volume(μl)

<5

<25

<100

Sample volume(ml)

<1

<10

<100

Inlet connection

Female Luer lock

Outlet connection

Male Luer slip

Flow direction

Enter from INLET

Maximum Operating Pressure(psi)

87

Pre-filtration(μm)

GF*

Color code

No



Order information

Membrane

Pore size

(μm)

Quantity

(pcs)/pack

Diameter

4 mm

Diameter

13 mm

Diameter

25 mm

Nylon

0.22

100

CPSFNY0422NE

CPSFNY1322NE

CPSFNY2522NE

Nylon

0.45

100

CPSFNY0445NE

CPSFNY1345NE

   CPSFNY2245NE

PTFE/B

0.22

100

CPSFPTFE0422NE-B

CPSFPTFE1322NE-B

CPSFPTFE2522NE-B

PTFE/B

0.45

100

CPSFPTFE0445NE-B

CPSFPTFE1345NE-B

CPSFPTFE2245NE-B

PTFE/L

0.22

100

CPSFPTFE0422NE-L

CPSFPTFE1322NE-L

CPSFPTFE2522NE-L

PTFE/L

0.45

100

CPSFPTFE0445NE-L

CPSFPTFE1345NE-L

CPSFPTFE2245NE-L

PES

0.22

100

CPSFPES0422NE

CPSFPES1322NE

CPSFPES2522NE

PES

0.45

100

CPSFPES0445NE

CPSFPES1345NE

   CPSFPES2245NE

PVDF/B

0.22

100

CPSFPVDF0422NE-B

CPSFPVDF1322NE-B

CPSFPVDF2522NE-B

PVDF/B

0.45

100

CPSFPVDF0445NE-B

CPSFPVDF1345NE-B

CPSFPVDF2245NE-B

PVDF/L

0.22

100

CPSFPVDF0422NE-L

CPSFPVDF1322NE-L

CPSFPVDF2522NE-L

PVDF/L

0.45

100

CPSFPVDF0445NE-L

CPSFPVDF1345NE-L

CPSFPVDF2245NE-L

MCE

0.22

100

CPSFMCE0422NE

CPSFMCE1322NE

CPSFMCE2522NE

MCE

0.45

100

CPSFMCE0445NE

CPSFMCE1345NE

   CPSFMCE2245NE

CA

0.22

100

CPSFCA0422NE

CPSFCA1322NE

CPSFCA2522NE

CA

0.45

100

CPSFCA0445NE

CPSFCA1345NE

   CPSFCA2245NE



What's more?

1. PP or Glass Fiber Prefilter syringe filters are available for ChemPure series

2. More pore sizes are available upon requests

3. .../B (B for hydrophobic), .../L (L for hydrophilic)
