Product Parameters

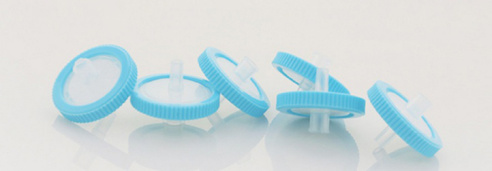

ChemMax® Syringe Filter
ChroMax syringe filters are color-coded syringe filters and designed to speed up and increase sample volume throughput while reducing thumb pressure.
The ChroMax series are especially named for 30mm syringe filters, which are available with all kinds of membrane material, such as Nylon, CA, PES, MCE, PVDF, PTFE and so on. The regular pore sizes are 0.22 and 0.45 micron, while other pore sizes are available upon request.
FeatureColor coding: easier to tell the membrane material Larger filtration areas: increase the sample throughout The Design of sample distribution rings: increase the membra ne flow rate Better membrane media: improve membrane flow rate and filt ration efficiency Broad Application: a wide range of filtration media meets diver se application needs Minimum sample hold-up: the filter housing is specifically desi gned to maximize the sample recovery Sterile Verison: Filters can be purchased pre-sterilized by Gam ma radiation and individually packaged |
Application■ HPLC, UHPLC, IC, GC, ■ Removal of protein precipitates ■ Dissolution testing ■ Cell culture ■ Other filtration |
 |
 |
Data Sheet
|
Parameters |
ChroMax |
|
Medical Grade Housing material |
PP |
|
diameter(mm) |
30 |
|
Pore size(μm) |
0.22, 0.45 & more |
|
Large effective Filtration area(cm²) |
5.39 |
|
Holdup volume(μl) |
<100 |
|
Sample volume(ml) |
<200 |
|
Inlet connection |
Female Luer lock |
|
Outlet connection |
Male Luer slip |
|
Flow direction |
Enter from INLET |
|
Maximum Operating Temperature(°C) |
50 |
|
Maximum Operating Pressure(psi) |
87 |
|
Pre-filtration(μm) |
GF* |
|
Color code |
Yes |
Order information
|
Membrane |
Pore size (μm) |
Quantity (pcs)/pack |
Diameter 30 mm |
|
Nylon |
0.22 |
100 |
CPSFNY3022NX |
|
Nylon |
0.45 |
100 |
CPSFNY3045NX |
|
PTFE/B |
0.22 |
100 |
CPSFPTFE3022NX-B |
|
PTFE/B |
0.45 |
100 |
CPSFPTFE3045NX-B |
|
PTFE/L |
0.22 |
100 |
CPSFPTFE3022NX-L |
|
PTFE/L |
0.45 |
100 |
CPSFPTFE3045NX-L |
|
PES |
0.22 |
100 |
CPSFPES3022NX |
|
PES |
0.45 |
100 |
CPSFPES3045NX |
|
PVDF/B |
0.22 |
100 |
CPSFPVDF3022NX-B |
|
PVDF/B |
0.45 |
100 |
CPSFPVDF3045NX-B |
|
PVDF/L |
0.22 |
100 |
CPSFPVDF3022NX-L |
|
PVDF/L |
0.45 |
100 |
CPSFPVDF3045NX-L |
|
MCE |
0.22 |
100 |
CPSFMCE3022NX |
|
MCE |
0.45 |
100 |
CPSFMCE3045NX |
|
CA |
0.22 |
100 |
CPSFCA3022NX |
|
CA |
0.45 |
100 |
CPSFCA3045NX |
What's more?

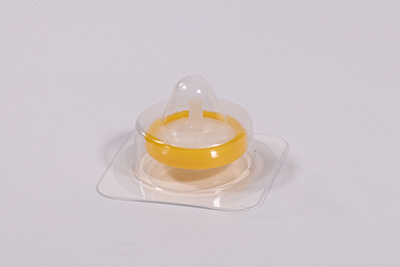

1. Sterile syringe filters are available for ChromMax series
2. More pore sizes are available upon requests
3. .../B (B for hydrophobic), .../L (L for hydrophilic)
How to choose your sample preparation device?
Step 1: Choose the suitable membrane filtration medium based on characteristics of samples.
|
Solutions |
Recommended |
|
Solvent Mixtures |
Nylon, MCE |
|
Tissue culture Media, Buffers, Protein Analysis/ Biological Samples |
CA, PES |
|
High Particulate Loads |
With GF or PP pre-filter |
|
Aggressive or Pure Organic Solvents |
PTFE, PVDF |
Step 2: Choose the suitable diameter
|
Volume of samples |
||
|
< 1 ml |
< 10 ml |
< 100 ml |
|
4mm |
13mm |
25mm/30mm |
Step 3: Choose the suitable pore size based on the nature of your sample
Removal of high particulate matter with a glass fber preflter is critical before any drug, tox, or dirty environmental sample is fltered to ensure the highest syringe flter membrane performance.
Generally, 0.45 µm porosity flters are used to remove particulates from samples and mobile phase solutions. For sterile-fltration, a 0.20 µm porosity flter can be used.
