MCE Membrane Filter

We offer a complete range of mixed cellulose ester membranes, with a wide choice of pore sizes (from 0.2 to 3 µm) and diameters. The membranes are also available in sterile format and/or with a grid pattern that provides guidance for the quantification of microbial colonies without growth inhibition or enhancement.

Category：

Membrane Filter

E-MAIL：

info@chemplus-sci.com

Product inquiry

Chemplus® MCE Membrane Filter

Mixed cellulose ester membranes are composed of cellulose acetate and cellulose nitrate. The membrane offers a high degree of internal surface area for greater product adsorption. Mixed cellulose ester membranes are biologically inert and are a popular membrane filter choice in analytical and research applications.

Features

■ Composition: Mixed cellulose esters including cellulose nitrate

and cellulose acetate, also known as nitrocellulose

■ High porosity provides superior flow rates

■ High protein binding can be blocked by pretreatment 0 r utili

zed in applications

■ High purity: Triton-free

■ Autoclave: Withstands autoclaving temperatures up to 130°C w

ithout adversely affecting bubble point, flowrate or microbiol

ogical recovery

■ Rapid wetting time: <3 seconds to wet a 47mm diameter disc

with aqueous 1% methylene blue buffers,or for vacuum dega

ssing

Applications

■ Standard membranes for many laboratory applications includi

ng filter sterilizing biological fluids, microbiology, contaminatio

n analysis and air monitoring

■ Gridded filters available for quantifying microbial growth

■ Available non-sterile o r sterilized

Specifications

Parameters	MCE
Filter Diameter (mm)	47 and 50 mm
Filter Surface	None or gridded
Filter Color	White, black or green
Sterility	None or sterile
Filter Pore Size (µm)	0.22, 0.45, 0.8 & more
Extractables	＜2%

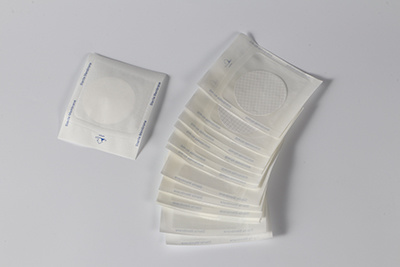

White membrane with blak grid

Applications:

● Analysis of E. Coli bacteria

Examination of:

● Dark colonies

Pore Size: 0.22μm, 0.45μm, 0.8μm

Diameter: 47mm, 50mm

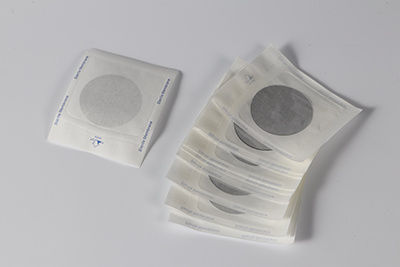

Black membrane with white grids

Applications:

● Analysis of yeast and mold and Legionella sp.

Examination of:

● White, being colonies

Pore Size: 0.45μm, 0.8μm

Diameter: 47mm, 50mm

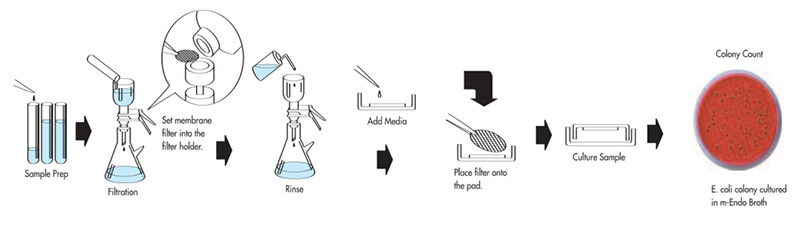

Sample Filtration and Growth Procedures

Order information

Diameter	Description	Pore size (μm)	Quantity (pcs)/pack	Part Number
MCE 13mm	White, Plain	0.22	400	CPMFMCE1322
MCE 13mm	White, Plain	0.45	400	CPMFMCE1345
MCE 13mm	White, Plain	0.80	400	CPMFMCE1380
MCE 25mm	White, Plain	0.22	200	CPMFMCE2522
MCE 25mm	White, Plain	0.45	200	CPMFMCE2545
MCE 25mm	White, Plain	0.80	200	CPMFMCE2580
MCE47mm	White, Plain	0.22	200	CPMFMCE4722
MCE 47mm	White, Plain	0.45	200	CPMFMCE4745
MCE 47mm	White, Plain	0.80	200	CPMFMCE4780
MCE 50mm	White, Plain	0.22	200	CPMFMCE5022
MCE 50mm	White, Plain	0.45	200	CPMFMCE5045
MCE 50mm	White, Plain	0.80	200	CPMFMCE5080
MCE 90mm	White, Plain	0.22	100	CPMFMCE9022
MCE 90mm	White, Plain	0.45	100	CPMFMCE9045
MCE 47mm	Black, Plain	0.22	200	CPMFMCE4722B
MCE 47mm	Black, Plain	0.45	200	CPMFMCE4745B
MCE 47mm	Black, Plain	0.80	200	CPMFMCE4745B
MCE 47mm	Sterile, White, Black Grids	0.22	200	CPMFMCE4722GWS
MCE 47mm	Sterile, White, Black Grids	0.45	200	CPMFMCE4745GWS
MCE 47mm	Sterile, White, Black Grids	0.80	200	CPMFMCE4780GWS
MCE 47mm	Sterile, Black, White Grids	0.22	200	CPMFMCE4722GBS
MCE 47mm	Sterile, Black, White Grids	0.45	200	CPMFMCE4745GBS
MCE47mm	Sterile, Black, White Grids	0.80	200	CPMFMCE4780GBS
Chemplus MCE	Other pore sizes or diameters are available upon request

MCE Membrane Data Sheet

Pore Size(μm)	Bubble Point(Bar)	Thickness(μm)	Water Flow Rate (mL/min/cm2)
0.20	≥3.62	125±15	17-19
0.45	≥2.23	125±15	55-60
0.65	≥1.18	125±15	120-135
0.80	≥0.95	125±15	160-180
1.20	≥0.77	125±15	230-270
3.0	≥0.69	125±15	290-320
5.0	≥0.56	125±15	500-560
8.0	≥0.40	125±15	550-600
