Product Parameters

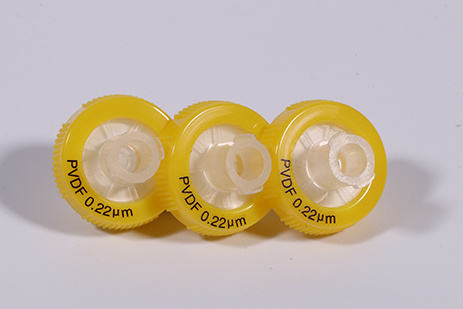

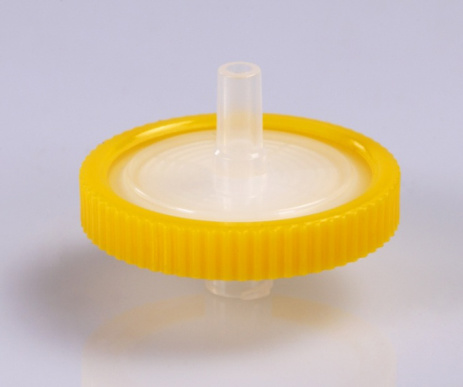

ChromPlus® Syringe Filter
ChromPlus Syringe Filters are widely adopted in the clarification of aqueous solutions, including column eluates, tissue culture additives and HPLC samples. Extremely low extractables of pure medical grade PP housing and high qualilty membrane component ensure better and consistent testing results. The unique design of gear edge for easy handling smooth filtratiton process significantly.
Housing Material■ Medical grade virgin PP raw material eliminate extractables to ensure accurate testing results.
Housing Design■ Unique design of gear rim makes filtration process easy handli ng. ■ Marked with identifying code to denote pore size, membrane material ■ Over modeled edge stands higher operating pressure.
Diameter■ Available in 13mm, 25mm. |
 |
 |
Nylon- broad chemical compatibility with cost-effectiveness PES- fast flow rate as well as high throghput for general use PVDF- wide chemical compatility with good mechanical propert ies. CA- low protein binding ideally for protein and enzyme filtratio ns PTFE- extremely wide chemical competibility with low level ofe xtractables. ■ Multiple pure membrane medium maximizes chemical compat ibility for wide applications. |
Data Sheet
|
Parameters |
ChromPlus |
|
|
Medical Grade Housing material |
PP |
|
|
diameter(mm) |
13 |
25 |
|
Pore size(μm) |
0.22, 0.45 & more |
|
|
Large effective Filtration area(cm²) |
0.92 |
2.98 |
|
Holdup volume(μl) |
<25 |
<100 |
|
Sample volume(ml) |
<10 |
<100 |
|
Inlet connection |
Female Luer lock |
|
|
Outlet connection |
Male Luer slip |
|
|
Flow direction |
Enter from INLET |
|
|
Maximum Operating Temperature(°C) |
50 |
|
|
Maximum Operating Pressure(psi) |
87 |
|
|
Pre-filtration(μm) |
No |
|
|
Color code |
Yes |
|
Order information
|
Membrane |
Pore size (μm) |
Quantity (pcs)/pack |
Diameter 13 mm |
Diameter 25 mm |
|
Nylon |
0.22 |
100 |
CPSFNY1322NS |
CPSFNY2522NS |
|
Nylon |
0.45 |
100 |
CPSFNY1345NS |
CPSFNY2245NS |
|
PTFE/B |
0.22 |
100 |
CPSFPTFE1322NS-B |
CPSFPTFE2522NS-B |
|
PTFE/B |
0.45 |
100 |
CPSFPTFE1345NS-B |
CPSFPTFE2245NS-B |
|
PTFE/L |
0.22 |
100 |
CPSFPTFE1322NS-L |
CPSFPTFE2522NS-L |
|
PTFE/L |
0.45 |
100 |
CPSFPTFE1345NS-L |
CPSFPTFE2245NS-L |
|
PES |
0.22 |
100 |
CPSFPES1322NS |
CPSFPES2522NS |
|
PES |
0.45 |
100 |
CPSFPES1345NS |
CPSFPES2245NS |
|
PVDF/B |
0.22 |
100 |
CPSFPVDF1322NS-B |
CPSFPVDF2522NS-B |
|
PVDF/B |
0.45 |
100 |
CPSFPVDF1345NS-B |
CPSFPVDF2245NS-B |
|
PVDF/L |
0.22 |
100 |
CPSFPVDF1322NS-L |
CPSFPVDF2522NS-L |
|
PVDF/L |
0.45 |
100 |
CPSFPVDF1345NS-L |
CPSFPVDF2245NS-L |
|
MCE |
0.22 |
100 |
CPSFMCE1322NS |
CPSFMCE2522NS |
|
MCE |
0.45 |
100 |
CPSFMCE1345NS |
CPSFMCE2245NS |
|
CA |
0.22 |
100 |
CPSFCA1322NS |
CPSFCA2522NS |
|
CA |
0.45 |
100 |
CPSFCA1345NS |
CPSFCA2245NS |
What’s more?

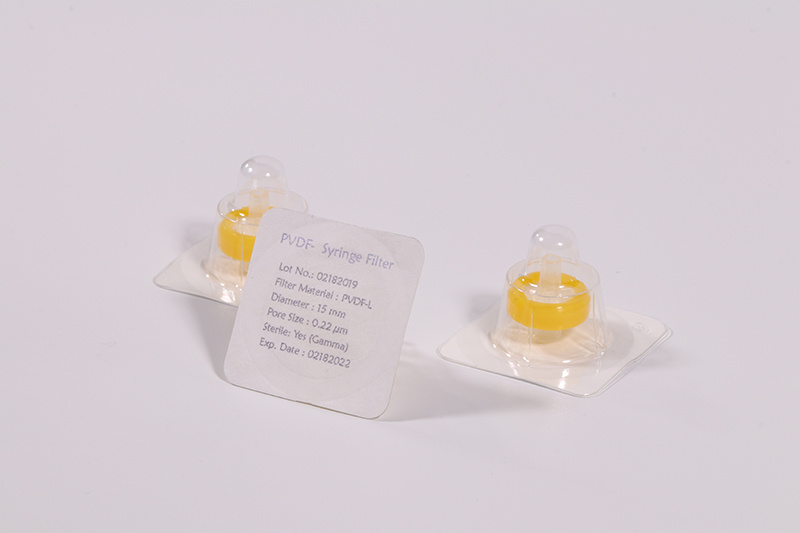

1. Sterile syringe filters are available for ChromPlus series
2. More pore sizes are available upon requests
3. .../B (B for hydrophobic), .../L (L for hydrophilic)
