Sample vial
Category：
Product Parameters
Sample vial
|
|
 |
 |
ChemPlus sample vials provide advantages over the standard straight glass sample vials. The flared end of the vial makes loading a liquid sample much easier since the flare helps guide the syringe needle into the vial. The flared end also makes the vial much stronger so that vials can easily be inserted and removed from the end of the probe using tweezers without breaking the glass.
|
Autosampler Vial |
|||
|
Design of the Neck |
Volume |
Type of Glass |
Dimension |
|
8-425 |
2mL |
Type I, 33 expansion glass (Clear); Type I, 51 expansion glass (Amber) |
32*11.6mm |
|
9-425 |
2mL |
||
|
10-425 |
2mL |
||
|
11mm Crimp top |
2mL |
||
|
Snap top |
2mL |
||
|
Suitable for: Waters®, Agilent, Beckman®, Thermo®, Dynatech®, Gilson®, Hitachi®, Perkin-Elmer™, Varian®, Spark®. |
|||
|
Insert Vial |
|||
|
For 8-425 screw top vial |
100μL |
Type I, 33 expansion glass |
29*5mm |
|
200μL |
31*5mm |
||
|
300μL |
31*5mm |
||
|
For 9-425, 10-425, 11mm Crimp top, Snap top vial |
250μL |
29*6mm |
|
|
300μL |
31*6mm |
||
|
400μL |
31*6mm |
||
|
Storage Vial |
|||||
|
Design of the Neck |
Volume |
Type of Glass |
Dimension |
||
|
13-425 |
4mL |
Type I, 33 expansion glass (Clear); Type I, 51 expansion glass (Amber) |
45*15mm |
||
|
15-425 |
8mL |
61*16.6mm |
|||
|
15-425 |
12mL |
66*18mm |
|||
|
24-400 |
20mL |
57*27.5mm |
|||
|
24-400 |
30mL |
72.5*27.5mm |
|||
|
24-400 |
40mL |
95*27.5mm |
|||
|
24-400 |
60mL |
140*27.5mm |
|||
|
Headspace Vial |
|||||
|
Design of the Neck |
Volume |
Top |
Bottom |
Dimension |
|
|
18mm Screw top* |
10mL |
Flat |
Flat/Round |
46*22.5mm |
|
|
20mL |
Flat/Round |
75*22.5mm |
|||
|
20mm Crimp top |
10mL |
Flat |
Flat/Round |
46*22.5mm |
|
|
10mL |
Bevelled |
Flat/Round |
|||
|
20mL |
Flat |
Flat/Round |
75*22.5mm |
||
|
20mL |
Bevelled |
Flat/Round |
|||
|
* Suitable for: CTC Combi PAL(Varian, Gerstel, Atas, Shimadzu), PerkinElmer, Agilent |
|||||
|
Cap & Septa for Autosampler Vial |
||
|
Design of the Neck |
Material |
Septa |
|
8-425 |
Polypropylene |
1. Pre-slit Blue PTFE/White Silicone Septa; 2. Red PTFE/White Silicone Septa; 3. White PTFE/Red Silicone Septa. |
|
9-425 |
||
|
10-425 |
||
|
11mm Crimp top |
Aluminum |
1. Red PTFE/White Silicone Septa; 2. White PTFE/Red Silicone Septa. |
|
Snap top |
Polypropylene |
|
|
Cap & Septa for Storage Vial |
||
|
Design of the Neck |
Material |
Septa |
|
13-425 |
Polypropylene |
1. White PTFE/White Silicone Septa; 2. White PTFE/Nature Silicone Septa; 3. Nature PTFE/Nature Silicone Septa; |
|
15-425 |
||
|
24-400 |
||
|
Cap & Septa for Headspace Vial |
||
|
18mm Screw top |
Magnetic Cap |
1. Blue PTFE/White Silicone Septa 2. White PTFE/Nature Silicone Septa 3. Blue PTFE/White Silicone Septa |
|
20mm Crimp top |
Aluminum Cap |
|
|
Magnetic Cap |
||

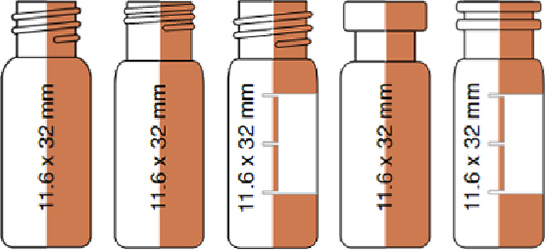

Order information for 2ml Vials & Caps
|
Item |
Description |
Qty. |
|
8-425 Screw Top Vial |
||
|
ACSV0802C |
2mL Clear vial, 11.6*32mm, 8-425 screw top |
100 |
|
ACSV0802CP |
2mL Clear vial, 11.6*32mm, 8-425 screw top, graduated with writing area |
100 |
|
ACSV0802A |
2mL Amber vial, 11.6*32mm, 8-425 screw top |
100 |
|
ACSV0802AP |
2mL Amber vial, 11.6*32mm, 8-425 screw top, graduated with writing area |
100 |
|
8-425 Screw Cap & Septa |
||
|
ACCS08RW |
8-425 Black screw cap, with red PTFE/white silicone septa, center hole |
100 |
|
ACCS08WR |
8-425 Black screw cap, with white PTFE/red silicone septa, center hole |
100 |
|
ACCS08BW-S |
8-425 Black screw cap, with pre-silt blue PTFE/white silicone septa, center hole |
100 |
|
9mm Screw Top Vial |
||
|
ACSV0902C |
2mL Clear vial, 11.6*32mm, 9mm screw top |
100 |
|
ACSV0902CP |
2mL Clear vial, 11.6*32mm, 9mm screw top, graduated with writing area |
100 |
|
ACSV0902A |
2mL Amber vial, 11.6*32mm, 9mm screw top |
100 |
|
ACSV0902AP |
2mL Amber vial, 11.6*32mm, 9mm screw top, graduated with writing area |
100 |
|
9mm Screw Cap & Septa |
||
|
ACCS09RW |
9mm Blue screw cap, with red PTFE/white silicone septa, center hole |
100 |
|
ACCS09WR |
9mm Blue screw cap, with white PTFE/red silicone septa, center hole |
100 |
|
ACCS09RW-ST |
9mm Blue screw cap, with red PTFE/white silicone septa, Solid-top (Storage) |
100 |
|
ACCS09BW-S |
9mm Blue screw cap, with pre-silt blue PTFE/white silicone septa, center hole |
100 |
|
ACCS09RW-B |
9mm Blue screw cap, with bonded red PTFE/white silicone septa, center hole |
100 |
|
ACCS09WR-B |
9mm Blue screw cap, with bonded white PTFE/red silicone septa, center hole |
100 |
|
ACCS09BW-BS |
9mm Blue screw cap, with bonded pre-silt blue PTFE/white silicone septa, center hole |
100 |
|
10-425 Screw Top Vial |
||
|
ACSV1002C |
2mL Clear vial, 11.6*32mm, 10-425 screw top |
100 |
|
ACSV1002CP |
2mL Clear vial, 11.6*32mm, 10-425 screw top, graduated with writing area |
100 |
|
ACSV1002A |
2mL Amber vial, 11.6*32mm, 10-425 screw top |
100 |
|
ACSV1002AP |
2mL Amber vial, 11.6*32mm, 10-425 screw top, graduated with writing area |
100 |
|
10-425 Screw Cap & Septa |
||
|
ACCS10RW |
10-425 Black screw cap, with red PTFE/white silicone septa, center hole |
100 |
|
ACCS10WR |
10-425 Black screw cap, with white PTFE/red silicone septa, center hole |
100 |
|
ACCS10BW-S |
10-425 Black screw cap, with pre-silt blue PTFE/white silicone septa, center hole |
100 |
|
11mm Crimp Top Vial |
||
|
ACSV1102C |
2mL Clear vial, 11.6*32mm, 11mm crimp top |
100 |
|
ACSV1102CP |
2mL Clear vial, 11.6*32mm, 11mm crimp top, graduated with writing area |
100 |
|
ACSV1102A |
2mL Amber vial, 11.6*32mm, 11mm crimp top |
100 |
|
ACSV1102AP |
2mL Amber vial, 11.6*32mm, 11mm crimp top, graduated with writing area |
100 |
|
11mm Crimp Top Cap & Septa |
||
|
ACCS11RW |
11mm Aluminum cap, with red PTFE/white silicone septa, center hole |
100 |
|
ACCS11WR |
11mm Aluminum cap, with white PTFE/red silicone septa, center hole |
100 |
|
ACCS11RWR |
11mm Aluminum cap, with red PTFE/white silicone septa/red PTFE, center hole |
100 |
|
ACCS11RW-S |
11mm Aluminum cap, with pre-silt red PTFE/white silicone septa, center hole |
100 |
|
ACCS11WR-S |
11mm Aluminum cap, with pre-silt red white PTFE/red silicone septa, center hole |
100 |
|
11mm Snap Top Vial |
||
|
ACSV11S02C |
2mL Clear vial, 11.6*32mm, 11mm snap top |
100 |
|
ACSV11S02CP |
2mL Clear vial, 11.6*32mm, 11mm snap top, graduated with writing area |
100 |
|
ACSV11S02A |
2mL Amber vial, 11.6*32mm, 11mm snap top |
100 |
|
ACSV11S02AP |
2mL Amber vial, 11.6*32mm, 11mm snap top, graduated with writing area |
100 |
|
11mm Snap Top Cap & Septa |
||
|
ACCS11SRW |
11mm PP snap cap, with red PTFE/white silicone septa, center hole |
100 |
|
ACCS11SWR |
11mm PP snap cap, with white PTFE/red silicone septa, center hole |
100 |
|
ACCS11SRWR |
11mm PP snap cap, with red PTFE/white silicone septa/red PTFE, center hole |
100 |
|
ACCS11SBW-S |
11mm PP snap cap, with pre-silt blue PTFE/white silicone septa, center hole |
100 |
